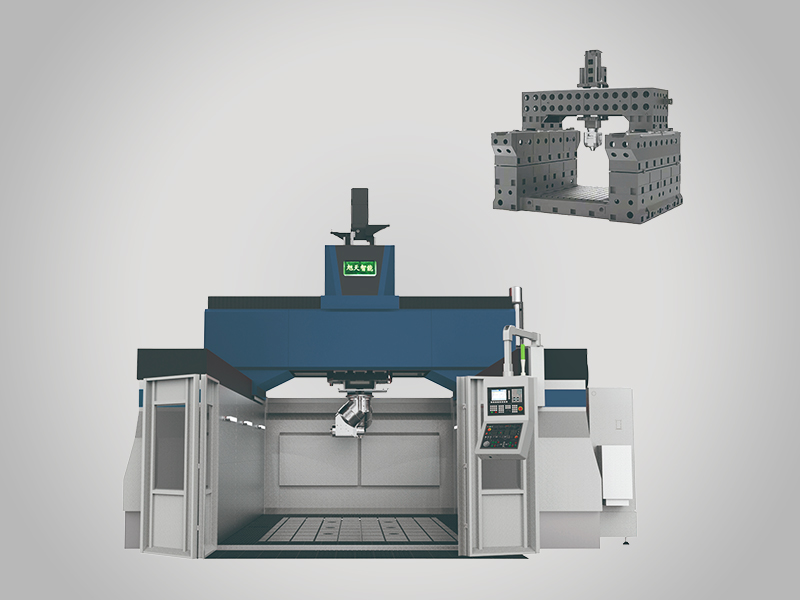

| Worktable | Worktable Size (L×W) | mm | 1700×1400 | 2100×1400 | 2000×1600 | 2500×1600 | 3200×2000 | 4000×2600 |
| Max. Worktable Load | T/m2 | 6 | 6 | 6 | 6 | 8 | 8 |
| T-slot (No. of slots-slot width×pitch) | mm | 9-18×125 | 9-18×125 | 9-18×125 | 8-18×180 | 10-18×180 | 9-18×278 |
| Worktable Longitudinal Travel (X-axis) | mm | 1600 | 2000 | 2200 | 2500 | 3200 | 4000 |
| Travel Range | Crossbeam Lateral Travel (Y-axis) | mm | 1300 | 1300 | 1600 | 1600 | 2000 | 2800 |
| Headstock Vertical Travel (Z-axis) | mm | 600 | 600 | 800 | 800 | 1000 | 1250 |
| Gantry Width | mm | 1600 | 1600 | 1900 | 2100 | 3050 | 3500 |
| Max. Height of Workpiece | mm | 1000 | 1000 | 1200 | 1250 | 1250 | 1500 |
| Distance from Spindle Face to Worktable | mm | 400–1000 | 400–1000 | 400–1200 | 450–1250 | 250–1250 | 250–1500 |
| Spindle | Spindle Type | / | Mechanical Spindle | Mechanical Spindle | Mechanical Spindle | Electric Spindle | Electric Spindle | Electric Spindle |
| Max. Spindle Speed | rpm | 12000 | 12000 | 12000 | 18000 | 18000 | 18000 |
| Spindle Taper | / | BBT50 | BBT50 | BBT50 | HSK-A63 | HSK-A63 | HSK-A63 |
| Feed Rate | Rapid Traverse Speed (X/Y/Z) | m/min | 10/10/10 | 10/10/10 | 10/10/10 | 10/10/10 | 10/10/10 | 10/10/10 |
| Cutting Feed Rate | mm/min | 1–10000 | 1–10000 | 1–10000 | 1–10000 | 1–10000 | 1–10000 |
| Motor | Spindle Motor Power | kW | 26 | 26 | 26 | 30 | 30 | 30 |
| Servo Motor Torque (X/Y/Z) | Nm | 36/36/36 | 36/36/36 | 36/36/36 | 36/36/36 | 48/48/48 | 48/48/48 |
| Coolant Pump Motor Power | kW | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Accuracy | Positioning Accuracy (X/Y/Z) | mm | 0.025/0.020/0.015 | 0.025/0.020/0.015 | 0.025/0.020/0.015 | 0.025/0.020/0.015 | 0.025/0.020/0.015 | 0.014/0.012/0.010 |
| Repeat Positioning Accuracy (X/Y/Z) | mm | 0.014/0.012/0.010 | 0.014/0.012/0.010 | 0.014/0.012/0.010 | 0.014/0.012/0.010 | 0.014/0.012/0.010 | 0.014/0.012/0.010 |
| Feed Drive | Linear Guide (X/Y/Z) | mm | 45/2; 45/2; Slide | 45/2; 45/2; Slide | 45/2; 45/2; Slide | 45/2; 45/2; Slide | 55/2; 55/2; 45/4 | 65/4; 65/4; 55/4 |
| Ball Screw (X/Y/Z) | mm | 50/50/50 | 50/50/50 | 55/2/50/10/5010 | 6310/50/10/5010 | 6312; 5010; | 8020; 6312; |
| System | CNC System | / | SIEMENS 828D | SIEMENS 828D | SIEMENS 828D | SIEMENS 828D | SIEMENS 828D | SIEMENS 828D |
| Power Supply | Power Supply | KVA | 35 | 35 | 45 | 45 | 60 | 60 |
| Air Pressure | Air Demand | kg/cm2 | ≥6 | ≥6 | ≥6 | ≥6 | ≥6 | ≥6 |
| Air Flow Rate | m3/min | ≥0.5 | ≥0.5 | ≥0.5 | ≥0.5 | ≥0.5 | ≥0.5 |
| ATC Option | ATC Type | / | Chain Type | Chain Type | Chain Type | Chain Type | Chain Type | Chain Type |
| ATC Capacity | pcs | 32 | 32 | 32 | 32 | 32 | 32 |
| Max. Tool Weight | kg | 8 | 8 | 8 | 8 | 8 | 8 |
| Max. Tool Diameter (Full) | mm | 80 | 80 | 80 | 80 | 80 | 80 |
| Max. Tool Diameter (Adjacent Empty) | mm | 120 | 120 | 120 | 120 | 120 | 120 |
| Max. Tool Length | mm | 300 | 300 | 300 | 300 | 300 | 300 |
| Tool Change Time | s | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 |
| Machine Dimensions | Floor Space (L×W×H) | mm | 4850×4000×3200 | 6500×4300×3200 | 5400×3400×3900 | 6000×3400×3900 | 4850×4000×3200 | 6500×4300×3200 |
| Machine Weight (Approx.) | kg | 15000 | 18000 | 24000 | 26000 | 50000 | 55000 |
| Note | Technical parameters are subject to change without prior notice. |
